Reactor Mixer and co

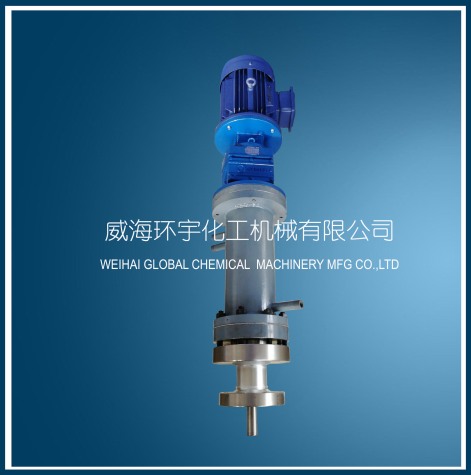

100L Magnetic Coupler with Motor

Name:100L Magnetic Coupler with Motor

Details
0.1-30000L magnetic agitator

Features of magnetic agitator products:
Through magnetic action, the inner magnetic steel body in the seal cover is rotated, and the shaft of the inner magnetic steel body is connected with the shaft of the agitator to mix the material. The plane between the seal cover of the inner magnetic steel and the kettle body is separated by graphite pad through bolts to achieve complete isolation from the outside world, thus achieving no leakage under high temperature and pressure. Leakage.
It is especially suitable for mixing reaction of inflammable, explosive, highly toxic and precious media in pilot and large-scale production under high temperature, high pressure and vacuum conditions. It thoroughly solves the leakage problem that mechanical seals and packing seals can not overcome, and ensures that the environment and people are not harmed.

MAIN TECHNOLOGICAL INDEXES OF MAGNETIC MIXER:
Volume 0.1-30000L, pressure less than 20.0Mpa, temperature less than 300 C, stirring speed 20-1500r/min adjustable
The main material is made of 0Gr18Ni9 and the magnetic material is NdFeB.
Stirring with Different Viscosities
Viscosity refers to the impedance ability of fluid to flow. It is defined as the shear stress required on each 1cm2 plane when the fluid flows at the speed of 1cm/s. It is called dynamic viscosity and is expressed in Pa/s. Viscosity is an attribute of fluids. When the fluid flows in the pipeline, there are three states: laminar flow, transition flow and turbulence. They also exist in mixing equipment. One of the main parameters determining these States is the viscosity of the fluid. In the mixing process, it is generally considered that viscosity less than 5Pa/s is a low viscosity fluid, such as water, castor oil, maltose, jam, honey, lube heavy oil, low viscosity emulsion, etc. 5-50Pa/s is a medium viscosity fluid, such as ink, toothpaste, etc. 50-500Pa/s is a high viscosity fluid, such as gum, plasticsol, solid. Fuel, etc. Excessively high viscous fluids larger than 500 Pa/s, such as rubber mixtures, plastic melts, organosilicon, etc. For low viscosity media, a small diameter and high speed agitator can drive the surrounding fluid circulation to a distance. However, the fluid in high viscosity medium is not, so it needs to be driven directly by agitator. The impellers for low and medium viscous fluids are propeller type, open turbine type, propeller type, long and thin blade propeller type, disc turbine type, Brumakin type, plate and frame propeller type, three-blade back bend type, MIG type, etc. The impellers suitable for high viscous and ultra high viscous fluids are ribbon impeller, screw impeller, anchor impeller, frame impeller impeller, etc. Some fluid viscosities vary with the reaction, so it is necessary to use impellers suitable for wide viscosities, such as pan-energy impellers.
Magnetic coupler, magnetic stirrer, magnetic seal
